| Title | Specification | Brand | Coding |

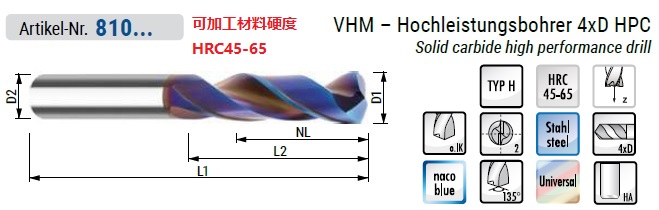

| carbide drill HPC - 4.5x4D | 4.5x6x24x66x17 | HAHN | 810.045.00 |
| Order no. | Shank Diameter | flute length L2 | overall length L1 | NL | Diameter D1( m7) |
| 810.045.00 | 6 | 24 | 66 | 17 | 4.5 |
| name | Order no. | Shank Diameter | flute length L2 | overall length L1 | NL | Diameter D1( m7) |
| carbide drill HPC - 16.0x4D | 810.160.00 | 16 | 65 | 115 | 45 | 16.0 |
| carbide drill HPC - 15.8x4D | 810.158.00 | 16 | 65 | 115 | 45 | 15.8 |
| carbide drill HPC - 15.0x4D | 810.150.00 | 16 | 65 | 115 | 45 | 15.0 |
| carbide drill HPC - 14.8x4D | 810.148.00 | 16 | 65 | 115 | 45 | 14.8 |
| carbide drill HPC - 14.0x4D | 810.140.00 | 14 | 60 | 107 | 43 | 14.0 |
| carbide drill HPC - 13.0x4D | 810.130.00 | 14 | 60 | 107 | 43 | 13.0 |
| carbide drill HPC - 12.8x4D | 810.128.00 | 14 | 60 | 107 | 43 | 12.8 |
| carbide drill HPC - 12.5x4D | 810.125.00 | 14 | 60 | 107 | 43 | 12.5 |
| carbide drill HPC - 12.0x4D | 810.120.00 | 12 | 55 | 102 | 40 | 12.0 |
